Product Description
Product Description:

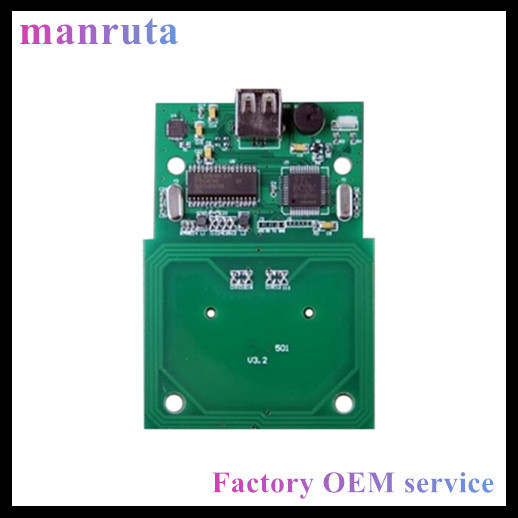

Manruta- 501D RFID Reader is the necessary front-end equipment to develop non-contact IC card related products and system integration. It can be a single structure on the whole, can also be embedded as a component into other systems. The most prominent features are high-performance, high stability and high compatibility along with 4 kV ESD protection. It is widely used in smart card system and the ideal choice for public transit, access control, attendance, network security, electronic ticketing and so on.
Manruta-501D is a non-contact IC card reader, it’s easy and convenient to operate and reading speed. Its maximum reading distance is up to 10cm.The user-friendly design of DEMO program allows beginners to understand card structure quickly. And user-controlled LED backlight and buzzer reflects the secondary development of the rich features of Manruta ®products.
Features
Radio Frequency Identity (RFID)
• Comply with ISO 15693 Protocol
• Support TI Rfid Tag-It HF
• Support I. CODE SLI and other Chips in line with the ISO15693 Protocol
• Support Reading and Writing
• Support the Secondary Development
Physical Interface
• USB 2.0 with USB Cable 1.5 M long, Shielded and Magnetic
• TTL
RFID Antenna
• Integration Design of Reader and Antenna
Frequency
• 13.56Mhz (HF: High Frequency)
ESD
• 4KV
Operating System
• Microsoft Windows2000/XP/Vista/WIN 7/WIN CE
• Linux
Read / Write Distance
• ISO 15693:12 CM (Depending on the Antenna Structure and the used Environment)
Power
• 5 Ma (Typical) Standby
• 90 Ma (Typical) Field Scanning
• 5V (Typical) Operation
Shape
• 98 * 68 * 10 (mm)
• About 100g
• Three-color LED
• Built-in Buzzer
Development Environment
• VC
Applications
• Consumer
• E-ticket
• Test Card
• Anti-counterfeiting
